6th July 2020
A visual thank you to our contributing sites
The COVID-19 Critical Care Consortium is an international collaboration of hundreds of hospital sites from dozens of countries around the world. Our sites have been slowly but steadily gathering data for critical cases of COVID-19 since earlier in the year, and we thought it would be good to show just how international the collaboration is.
To that end, in my role as one of the technical leads (responsible for the data pipeline and ingestion), I created out a simple (and no-risk) data product simply containing a list of our participant sites, and how many patients they have enrolled in our study at a given date. The details for those patients are - of course - not contained in this data product in any way.

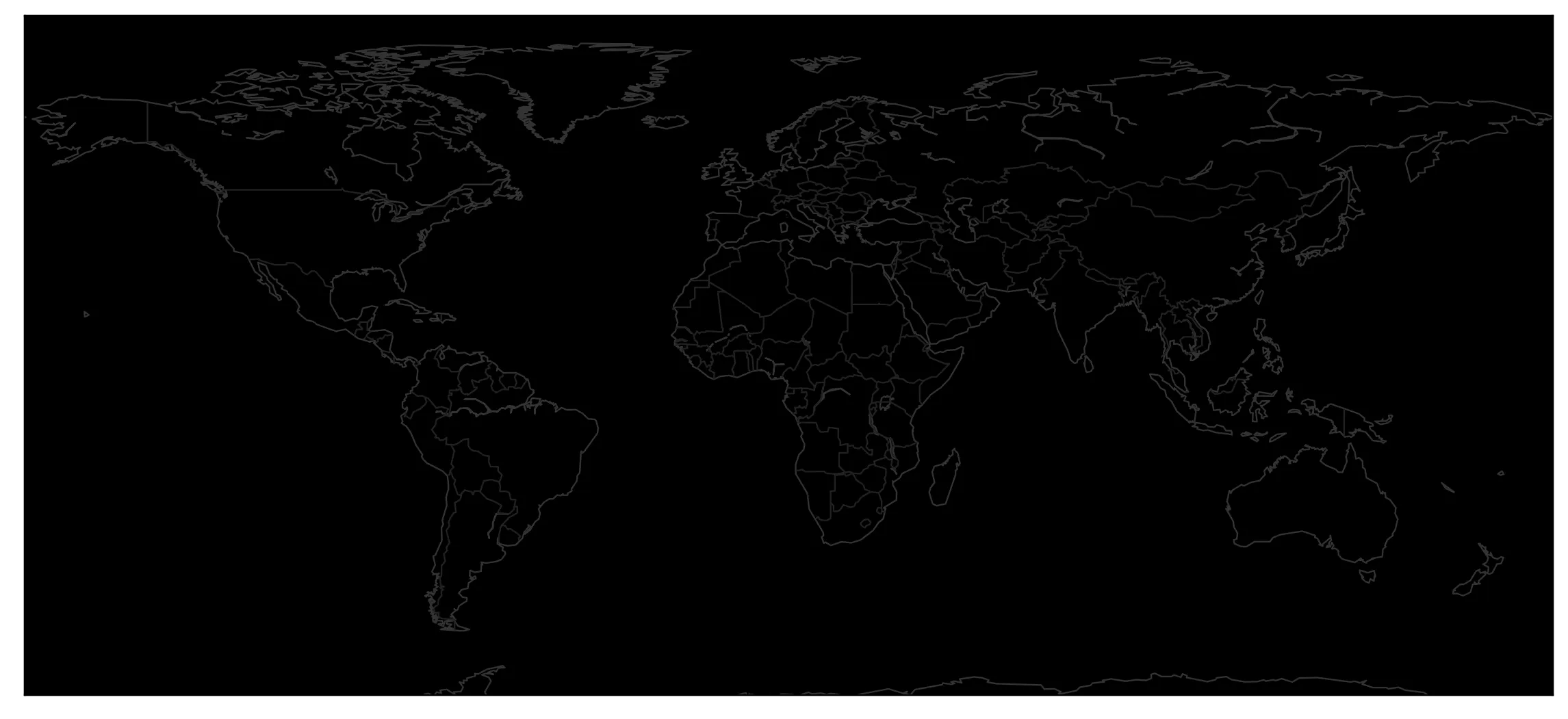

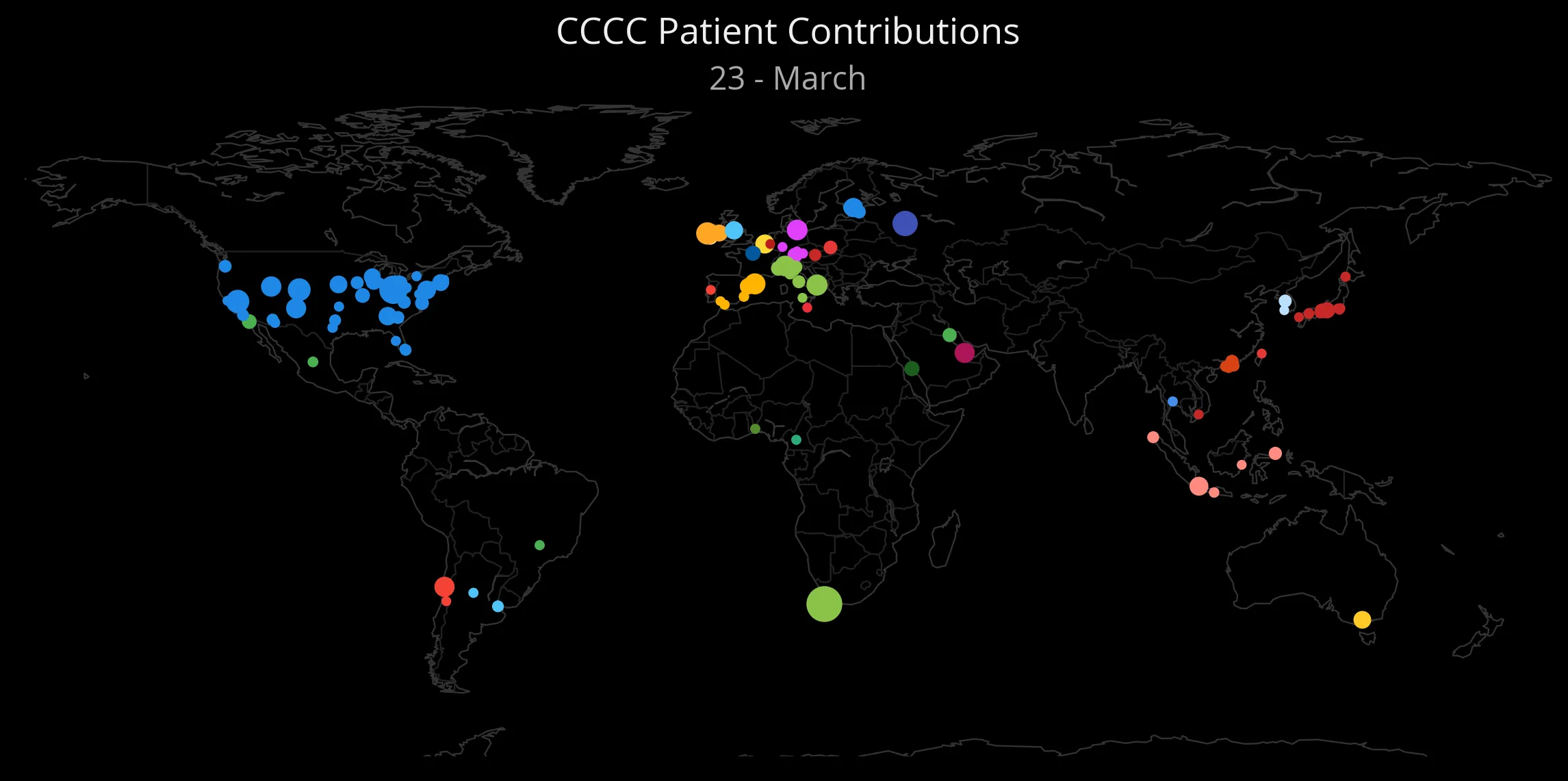

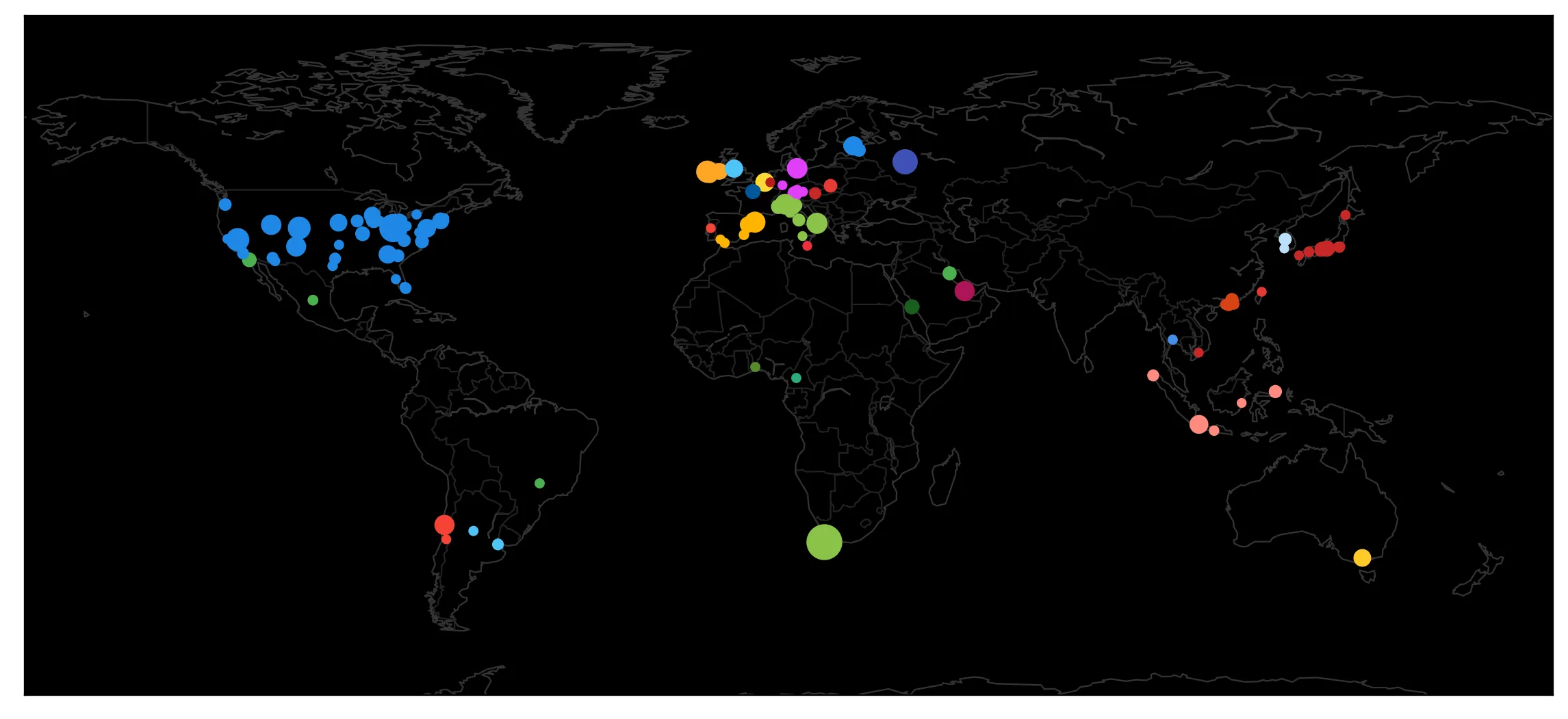

This is what we’re going to be making.
So let’s start things up, and load in the enrolment data.
00543-Medical University of Vienna | 00544-Lancaster General Health | 00546-Penn Medicine | 00547-Oklahoma Heart Institute | 00548-UH Cleveland Hospital | |
---|---|---|---|---|---|
date_enrolment | |||||
2020-09-24 | 9 | 39 | 42 | 2 | 26 |
2020-09-25 | 9 | 39 | 42 | 2 | 26 |
2020-09-26 | 9 | 39 | 42 | 2 | 26 |
2020-09-27 | 9 | 39 | 42 | 2 | 26 |
2020-09-28 | 9 | 39 | 42 | 2 | 26 |
Great, so you can see we have the vetical axis representing the date, and each site is a column, with its numeric identifier first. Lets remove those IDs, because they are useful in a database, but not for us.
sites = [c.split("-", 1)[1] if "-" in c else c for c in data.columns]
print(sites[60:70])
['Fukuoka University', 'Mater Dei Hospital', 'Yokohama City University Medical Center', 'Nagoya University Hospital', 'PICU Saiful Anwar Hospital', 'Adult ICU Saiful Anwar Hospital', 'KourituTouseiHospital', 'HokkaidoUniversityHospital', 'ChibaUniversityHospital', 'UniversityofAlabamaatBirminghamHospital']
Looking good so far. However, I know that some of the sites have - for some reason - had all whitespace removed. So lets write a small parser to go from CamelCase to normal words.
['Fukuoka University', 'Mater Dei Hospital', 'Yokohama City University Medical Center', 'Nagoya University Hospital', 'PICU Saiful Anwar Hospital', 'Adult ICU Saiful Anwar Hospital', 'Kouritu Tousei Hospital', 'Hokkaido University Hospital', 'Chiba University Hospital', 'Universityof Alabamaat Birmingham Hospital']
This is probably as good as we can get it right now. So lets copy the dataframe so we don’t clobber the original, and update the columns.
data_fixed = data.copy()
data_fixed.columns = sites_fixed
data_fixed.iloc[-5:, :5]
Medical University of Vienna | Lancaster General Health | Penn Medicine | Oklahoma Heart Institute | UH Cleveland Hospital | |
---|---|---|---|---|---|
date_enrolment | |||||
2020-09-24 | 9 | 39 | 42 | 2 | 26 |
2020-09-25 | 9 | 39 | 42 | 2 | 26 |
2020-09-26 | 9 | 39 | 42 | 2 | 26 |
2020-09-27 | 9 | 39 | 42 | 2 | 26 |
2020-09-28 | 9 | 39 | 42 | 2 | 26 |
Now, I do want to make an animation out of this, with more frames than days, so we’ll just do a super simple interpolation to add extra evenly spaced datetimes that will correspond to each frame. In addition, I’ll start the clock ticking from February first.
And I also want to have the animation flash or brighten a bit when sites add new patients, so to get a feel for that, we’ll simply take the difference in rows (and fillna to put zero in the first row).
data_fixed_change = data_fixed.diff().fillna(0)
Each site obviously represents a specific physical location on the planet. Alas, I do not know this - all I have is a name. So, lets use opencage
to do a search for each site name, and extract the latitude and longitude for each site if we can find it. I don’t expect this to work for them all, but I’d rather manually look up ten sites than a hundred.
Let’s set up the library with our token to start with:
from opencage.geocoder import OpenCageGeocode
key = "" # The trial version allows you do this all for free
geocoder = OpenCageGeocode(key)
And then write a little function that - when given a query - will try and find the latitude, longitude and country. If it can’t find anything, we’ll return None and I’ll do it myself.
def get_lat_long_from_site(query):
results = geocoder.geocode(query)
if not len(results):
print(f"{query} unable to be located")
return None
lat = results[0]['geometry']['lat']
long = results[0]['geometry']['lng']
country = results[0]["components"]["country"]
return (lat, long, country)
And to make sure I don’t spam this API over and over, we’ll run this once, save it out to JSON, and when I run this again in the future we can just read the file in.
We now have 148 sites ready to go!
Great! Onto the next part…
Our dataframe is broken up into a lot of rows, where each row now represents a frame in the animation. Lets write a function to extract a row and put it into something easier to work with when plotting.
def get_row(date):
row = data_fixed.loc[date].to_frame().reset_index()
change = data_fixed_change.loc[date].to_frame().reset_index()
row.columns = ["site", "enrolment"]
change.columns = ["site", "change"]
row = row.merge(change, on="site")
row["date"] = date
row["coord"] = row["site"].map(coords)
row["lat"] = row["coord"].str[0]
row["long"] = row["coord"].str[1]
row["country"] = row["coord"].str[2]
row = row.drop(columns="coord")
# Manually fix up the issues to separate HK and China
hk = np.abs(row.lat - 22.3) < 0.2
row.loc[hk, "country"] = "Hong Kong"
np.random.seed(1)
row.loc[hk, "lat"] += np.random.normal(scale=0.5, size=hk.sum())
row.loc[hk, "long"] += np.random.normal(scale=0.5, size=hk.sum())
return row
test_row = get_row(data_fixed.index.max())
test_row
