6 Jul 2020, Samuel Hinton

Which Big City has the best Weather?


Python Plotting Preferred Weather

Like many people, I might one day be moving to the United States for work. However, I would like to know where I should move too. Where is too hot? Where is it too wet? Where is my little slice of paradise??

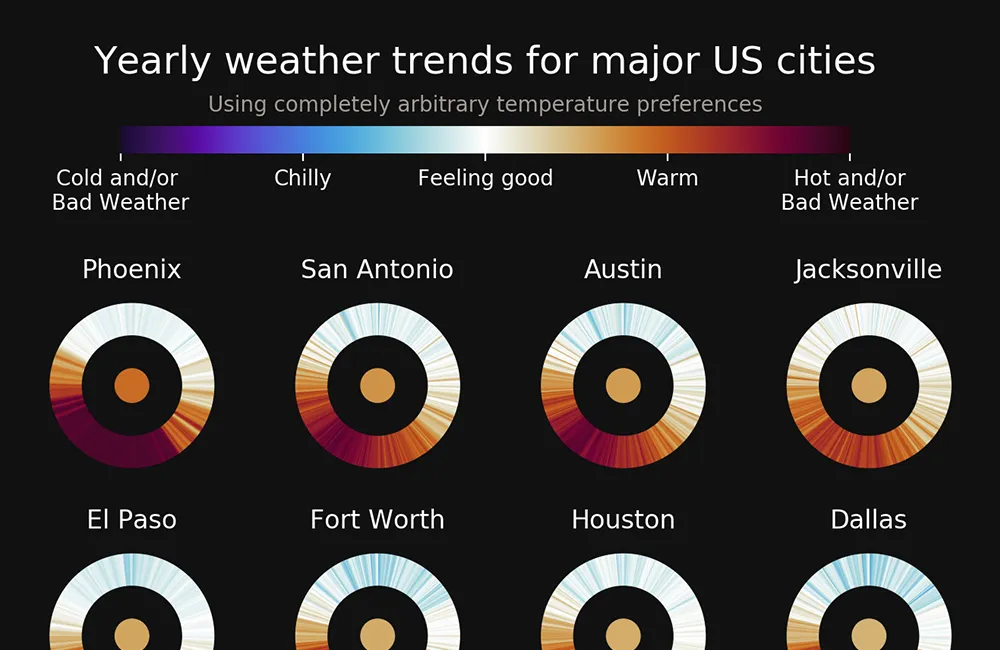

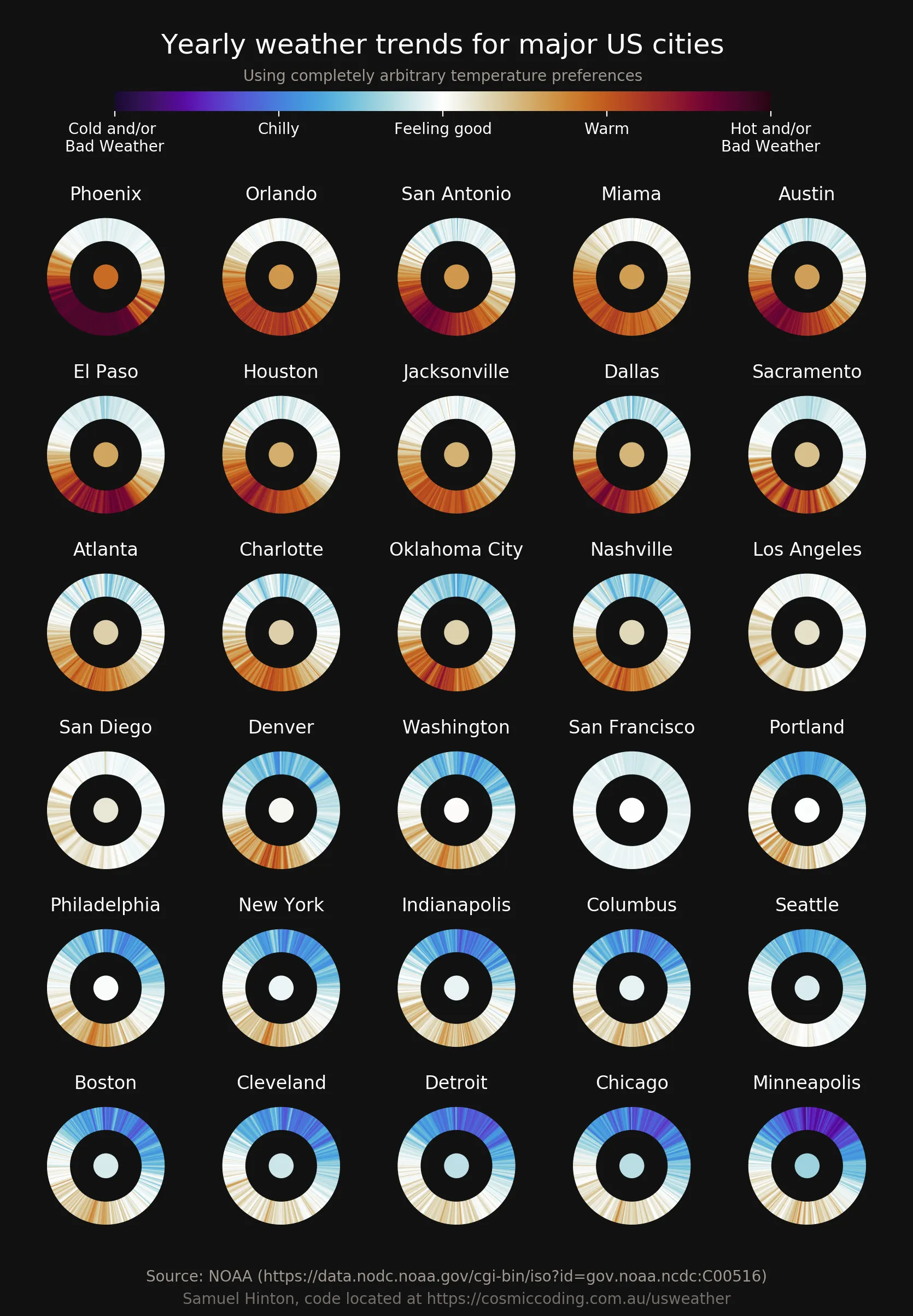

This is what we’ll be making:

So using the NOAA Global Summary of the Day and the top 25 most populated cities in the US, we’ve got enough to make a plot.

But first, we have to smack this data format into something useable.

Data preparation

I downloaded the data from 2020-2013, and extract the list of a billion csv files into a directory per year. Ouch. We’re going to have to pre-process this. Let’s load in the list of cities first from cities.csv. You can download that file here.

import os
import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
import matplotlib as mpl
import cmasher as cmr
from pathlib import Path


root = Path("D:/data/weather/")

cities = pd.read_csv(root / "cities.csv")
cities.head()
name lat long
0 New York 40.6635 -73.938700
1 Los Angeles 34.0194 -118.410800
2 Chicago 41.8376 -87.681800
3 Washington 38.9041 -77.017200
4 San Francisco 37.7775 -122.416389

Then, lets find all the csv files for the US states and load them in.

Great. Now lets open one of the weather files as an example:

pd.read_csv(root / "2020/71076099999.csv").describe().T[["mean", "std", "min", "max"]]
mean std min max
STATION 7.107610e+10 0.000000e+00 7.107610e+10 7.107610e+10
LATITUDE 5.956667e+01 1.282585e-13 5.956667e+01 5.956667e+01
LONGITUDE -1.084833e+02 4.275283e-14 -1.084833e+02 -1.084833e+02
ELEVATION 3.180000e+02 0.000000e+00 3.180000e+02 3.180000e+02
TEMP 1.806011e+01 2.669257e+01 -3.280000e+01 6.630000e+01
TEMP_ATTRIBUTES 2.366854e+01 1.440817e+00 1.000000e+01 2.400000e+01
DEWP 7.848315e+00 2.382630e+01 -4.060000e+01 4.990000e+01
DEWP_ATTRIBUTES 2.361236e+01 1.461856e+00 1.000000e+01 2.400000e+01
SLP 1.017151e+03 1.084217e+01 9.926000e+02 1.048300e+03
SLP_ATTRIBUTES 2.366854e+01 1.440817e+00 1.000000e+01 2.400000e+01
STP 9.654730e+02 1.031018e+02 4.500000e+00 9.986000e+02
STP_ATTRIBUTES 2.366854e+01 1.440817e+00 1.000000e+01 2.400000e+01
VISIB 9.999000e+02 3.192211e-12 9.999000e+02 9.999000e+02
VISIB_ATTRIBUTES 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00
WDSP 4.801685e+00 2.247471e+00 6.000000e-01 1.490000e+01
WDSP_ATTRIBUTES 2.366854e+01 1.440817e+00 1.000000e+01 2.400000e+01
MXSPD 8.594944e+00 3.352649e+00 1.900000e+00 1.810000e+01
GUST 5.808478e+02 4.868429e+02 1.500000e+01 9.999000e+02
MAX 3.051124e+01 2.678324e+01 -2.310000e+01 8.200000e+01
MIN 7.076404e+00 2.663468e+01 -4.320000e+01 5.450000e+01
PRCP 2.904494e-02 7.611089e-02 0.000000e+00 5.600000e-01
SNDP 4.333691e+02 4.848170e+02 8.000000e-01 9.999000e+02
FRSHTT 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00

Alright, so we have one csv file per year, per station. And what we’d want to do is match stations within a certain lat/long distance to the city coordinate. Oh boy, this is going to take a while to run.

Let’s write up something that goes through and just extracts station, lat, long, and then filters down to the stations we want. Im only going to use stations from 2020 (but they’ll have data from other years).

station_locations = root / "station_locations.csv"

# If Ive done this before, load in the previous results
if os.path.exists(station_locations):
    station_df = pd.read_csv(station_locations)

# Or else figure it out from scratch using 2020 year
else:
    stations = {}
    y = "2020"
    for f in os.listdir(root / y):
        path = root / y / f
        res = pd.read_csv(path, nrows=1, usecols=["STATION", "LATITUDE", "LONGITUDE"])
        stations[f.replace(".csv", "")] = res
    station_df = pd.concat(list(stations.values()))
    station_df.columns = ["station", "lat", "long"]
    station_df.to_csv(station_locations, index=False)

Wow that took a long time to run. Lets save it out so we don’t have to do that again. And then Im going to edit the code above to check that the station_location.csv doesn’t exist, so this doesn’t run whenever I start this notebook up.

# Checking everything looks alright
station_df.head()
station lat long
0 1001099999 70.933333 -8.666667
1 1001499999 59.791925 5.340850
2 1002099999 80.050000 16.250000
3 1003099999 77.000000 15.500000
4 1006099999 78.250000 22.816667

Okay, first issue down. Now what we can do is filter that list to determine which stations are in the cities we care about. So we want a method to map a station to a city, if it is close enough

def check_station(row, threshold=0.1):
    station, lat, long, *_ = row
    found = False
    distance = (cities.lat - lat)**2 + (cities.long - long)**2
    matches = distance < threshold
    if matches.sum():
        return cities[matches].name.iloc[0]
    else:
        return np.NaN

# Lets test this works, we should get New York out
check_station(("New York", 40.6, -73.9))
'New York'

Fantastic. Now lets run it over all stations:

station_df["city"] = station_df.apply(check_station, axis=1)
final_stations = station_df.set_index("station").dropna()
final_stations.head()
lat long city
station
71538099999 42.275556 -82.955556 Detroit
72011354829 42.543060 -83.178060 Detroit
72029153970 32.746940 -96.530560 Dallas
72030464752 40.100000 -75.266670 Philadelphia
72033493764 39.166670 -77.166670 Washington

Great, so we’ve got matching weather stations now. In fact, we have 91 of them! Now for the super slow part. For each of these stations, I want to go through and load in the csv files for all available years, keeping the city information preserved.

years = [y for y in os.listdir(root) if os.path.isdir(root / y)]
cols = ["STATION", "DATE", "MAX", "WDSP", "PRCP"]

df_name = root / "weather.csv"

if os.path.exists(df_name):
    df_weather = pd.read_csv(df_name)
else:
    dfs = []
    for y in years:
        for f in os.listdir(root / y):
            station = int(f.replace(".csv", ""))
            if station in final_stations.index:
                df = pd.read_csv(root / y / f, usecols=cols, parse_dates=["DATE"])
                df["city"] = final_stations.loc[station, "city"]
                dfs.append(df)
    df_weather = pd.concat(dfs).reset_index(drop=True)
    df_weather.to_csv(df_name, index=False)

df_weather
STATION DATE WDSP MAX PRCP city
0 71538099999 2013-01-01 7.3 34.2 0.0 Detroit
1 71538099999 2013-01-02 5.8 30.2 0.0 Detroit
2 71538099999 2013-01-03 10.0 28.4 0.0 Detroit
3 71538099999 2013-01-04 14.8 30.2 0.0 Detroit
4 71538099999 2013-01-05 9.5 30.2 0.0 Detroit
... ... ... ... ... ... ...
426336 99849999999 2020-06-26 3.3 78.6 0.0 Chicago
426337 99849999999 2020-06-27 4.8 84.7 0.0 Chicago
426338 99849999999 2020-06-28 3.1 84.9 0.0 Chicago
426339 99849999999 2020-06-29 2.9 79.9 0.0 Chicago
426340 99849999999 2020-06-30 3.1 80.1 0.0 Chicago

426341 rows × 6 columns

Alright, now we’re getting somewhere, 225k rows! Except, oh boy, I can see that 999 is being used as a NaN value. Lets fix that up.

# Yes it has all three variants -_-
df_weather = df_weather.replace(999.9, np.NaN).replace(99.99, np.NaN).replace(9999.9, np.NaN)
df_weather
STATION DATE WDSP MAX PRCP city
0 71538099999 2013-01-01 7.3 34.2 0.0 Detroit
1 71538099999 2013-01-02 5.8 30.2 0.0 Detroit
2 71538099999 2013-01-03 10.0 28.4 0.0 Detroit
3 71538099999 2013-01-04 14.8 30.2 0.0 Detroit
4 71538099999 2013-01-05 9.5 30.2 0.0 Detroit
... ... ... ... ... ... ...
426336 99849999999 2020-06-26 3.3 78.6 0.0 Chicago
426337 99849999999 2020-06-27 4.8 84.7 0.0 Chicago
426338 99849999999 2020-06-28 3.1 84.9 0.0 Chicago
426339 99849999999 2020-06-29 2.9 79.9 0.0 Chicago
426340 99849999999 2020-06-30 3.1 80.1 0.0 Chicago

426341 rows × 6 columns

Data engineering

The distinction here is that - at this point - we have a viable dataset which we can now manipulate as we see fit. We can create features and play around, but we have right here as a checkpoint. What I want to do is create a few features to determine what I would consider a good or bad day is. I’ll be simple, and break this into temperature and weather features. And note that - as I don’t really care what temperature it is during the night, I’ll use the max temperature for everything.

I want to define two sliding scales, between -1 and 1, where -1 is a horrible cold day, and 1 is a horrible hot day. Aka hot and bad weather, or cold and bad weather. This is obviously entirely subjective, but what I’ll do is this:

  • “Cold” becomes normalised between -10C to 15C (14F to 59F)
  • “Hot” becomes normalised between 28C to 38C (83F to 100F)
  • Precipitation (in inches) is normalised between 0 and 1.5
  • Wind (in knots) is normalised between 0 and 20
  • Weather is the maximum between precipiation and wind

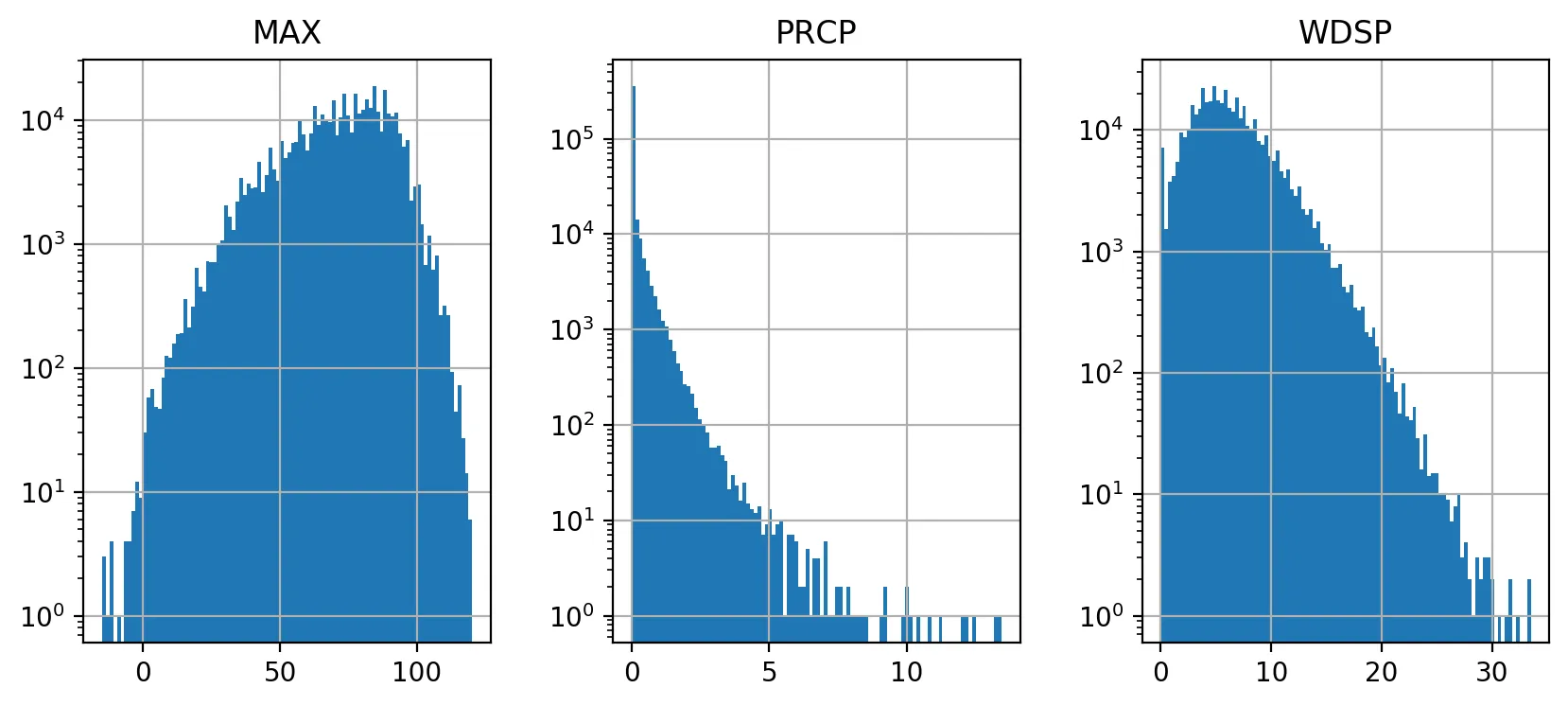

We can see the distributions here:

df_weather[["MAX", "PRCP", "WDSP"]].hist(bins=100, log=True, layout=(1, 3), figsize=(10, 4));

So let’s add in that feature:

from sklearn.preprocessing import minmax_scale

df_weather["cold"] = minmax_scale(df_weather.MAX.clip(14, 59), (-1, 0))
df_weather["hot"] = minmax_scale(df_weather.MAX.clip(83, 100), (0, 1))
df_weather["rating_precip"] = minmax_scale(df_weather.PRCP.clip(0, 1.5), (0, 1))
df_weather["rating_wind"] = minmax_scale(df_weather.PRCP.clip(0, 20), (0, 1))

# Combine the weather and temp ratings
df_weather["rating_weather"] = df_weather[["rating_precip", "rating_wind"]].max(axis=1)
df_weather["rating_temp"] = df_weather.cold + df_weather.hot + 0.001

# Make some little feature to represent our total rating
df_weather["rating"] = np.sign(df_weather.rating_temp) * df_weather.rating_weather + df_weather.rating_temp
df_weather["rating"] = minmax_scale(df_weather["rating"].clip(-1, 1))

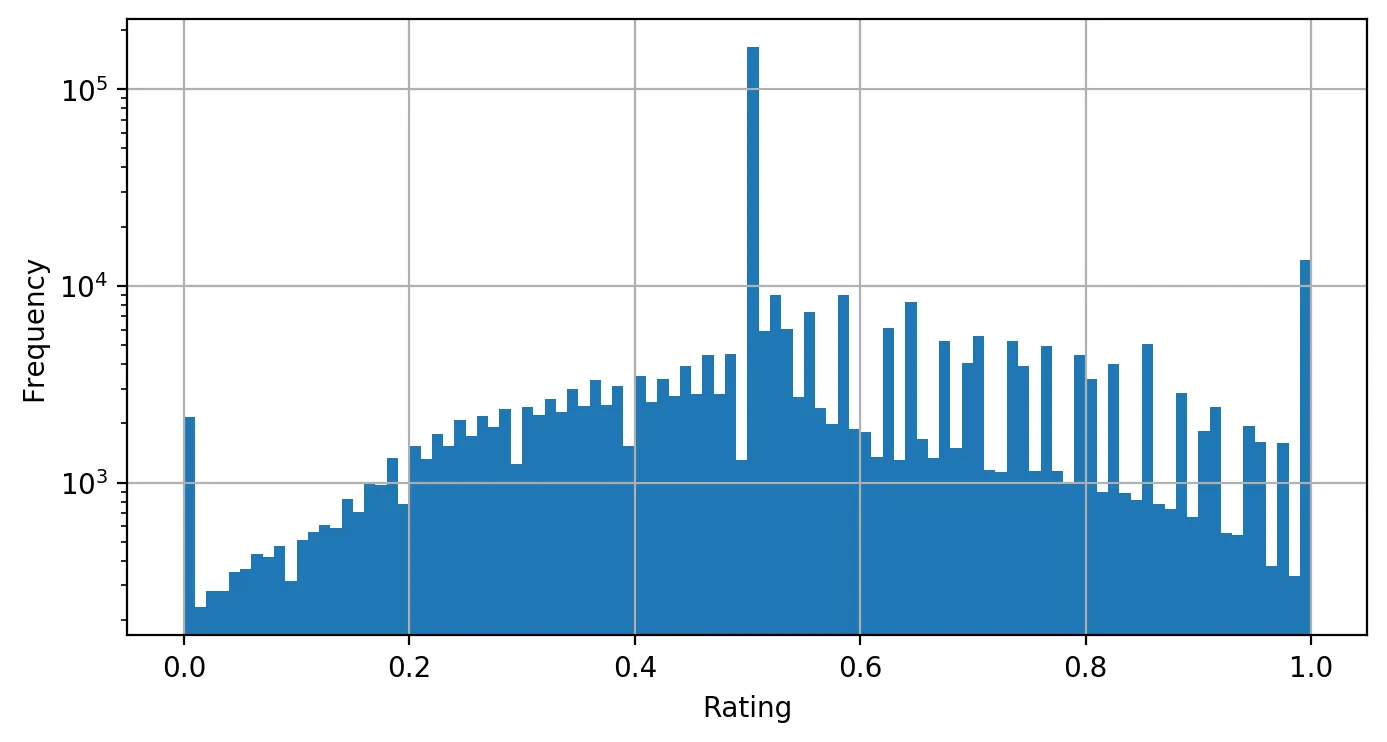

ax = df_weather["rating"].hist(bins=100, log=True, figsize=(8, 4))
ax.set_xlabel("Rating"), ax.set_ylabel("Frequency");

Obiously this is all completely dependent on arbitrary choices on weather. Let’s not get caught up on that. We can come back to this feature later if we need. For now, we want to take all the datapoints we have and take the average for each day in the year.

df_weather["day"] = df_weather.DATE.dt.dayofyear
df = df_weather.groupby(["city", "day"]).rating.mean().reset_index()
df
city day rating
0 Atlanta 1 0.411146
1 Atlanta 2 0.349296
2 Atlanta 3 0.442816
3 Atlanta 4 0.491880
4 Atlanta 5 0.398219
... ... ... ...
10975 Washington 362 0.423438
10976 Washington 363 0.404648
10977 Washington 364 0.357907
10978 Washington 365 0.335265
10979 Washington 366 0.369574

10980 rows × 3 columns

Make the plot

Again we’re going to run into the issue that we’ve compressed two axes (temp and weather) down into one. Ah well, I’m not going to publish this anyway!

First thing is I’ll just sort cities based on their average rating, and pick a colorset. I’m going to use a colormap from cmasher because I think it look great.

city_order = df.groupby("city").rating.mean().sort_values(ascending=False)
cmap = plt.get_cmap('cmr.fusion_r')

And then away we go plotting!

# Get a nice dark figure
bg = "#111111"
plt.style.use("dark_background")
fig, axes = plt.subplots(ncols=5, nrows=6, figsize=(10, 12))
fig.patch.set_facecolor(bg)

# Make donut plots
for (city, avg), ax in zip(city_order.iteritems(), axes.flatten()):
    df_tmp = df[df.city == city]
    xs = np.ones(df_tmp.shape[0])
    colors = [cmap(0.95 * r) for r in df_tmp.rating]
    ws, ts = ax.pie(xs, colors=colors, counterclock=False, startangle=90)
    # Set the line for each wedge to stop artifacts
    for w, c in zip(ws, colors):
        w.set_linewidth(0.5)
        w.set_edgecolor(c)

    ax.set_title(city, pad=-2)
    ax.set_aspect('equal', 'box')
    ax.add_artist(plt.Circle((0, 0), .6, color=bg))

    # Add average rating color circle
    ax.add_artist(plt.Circle((0, 0), .2, color=cmap(avg)))


# Add the custom colorbar
fig.subplots_adjust(top=0.83, bottom=0.04)
cbar_ax = fig.add_axes([0.2, 0.9, 0.6, 0.015])
cbar_ax.set_title("Yearly weather trends for major US cities", pad=25, fontsize=18)
cb = mpl.colorbar.ColorbarBase(cbar_ax, cmap=cmap, orientation='horizontal',
                               ticks=[0, 0.25, 0.5, 0.75, 1])
cb.outline.set_visible(False)
cb.ax.set_xticklabels(["Cold and/or \nBad Weather", "Chilly", "Feeling good", "Warm", "Hot and/or\nBad Weather"]);

# And add our annotations
plt.annotate('Using completely arbitrary temperature preferences',
                    (0.5,1), (0, 15), xycoords='axes fraction', color="#a19a92",
                    textcoords='offset points', size=10, va='top', ha="center")
plt.annotate('Source: NOAA (https://data.nodc.noaa.gov/cgi-bin/iso?id=gov.noaa.ncdc:C00516)',
                    (0.5,0.024), (0, 0), xycoords='figure fraction', color="#a19a92",
                    textcoords='offset points', size=10, va='bottom', ha="center")

There we go! Its not perfect, but I think it’s pretty, and certainly San Jose is looking like a real nice place to go! And lets not go live in Phoenix. I don’t know if its just stupidly hot or theres bad weather as well (a failing of the plot I admit), either way - nope.

Here’s the full code for convenience:

from pathlib import Path
from sklearn.preprocessing import minmax_scale
import cmasher as cmr
import matplotlib as mpl
import matplotlib.pyplot as plt
import numpy as np
import os
import pandas as pd



root = Path("D:/data/weather/")

cities = pd.read_csv(root / "cities.csv")
cities.head()

pd.read_csv(root / "2020/71076099999.csv").describe().T[["mean", "std", "min", "max"]]

station_locations = root / "station_locations.csv"

# If Ive done this before, load in the previous results
if os.path.exists(station_locations):
    station_df = pd.read_csv(station_locations)

# Or else figure it out from scratch using 2020 year
else:
    stations = {}
    y = "2020"
    for f in os.listdir(root / y):
        path = root / y / f
        res = pd.read_csv(path, nrows=1, usecols=["STATION", "LATITUDE", "LONGITUDE"])
        stations[f.replace(".csv", "")] = res
    station_df = pd.concat(list(stations.values()))
    station_df.columns = ["station", "lat", "long"]
    station_df.to_csv(station_locations, index=False)

# Checking everything looks alright
station_df.head()

def check_station(row, threshold=0.1):
    station, lat, long, *_ = row
    found = False
    distance = (cities.lat - lat)**2 + (cities.long - long)**2
    matches = distance < threshold
    if matches.sum():
        return cities[matches].name.iloc[0]
    else:
        return np.NaN

# Lets test this works, we should get New York out
check_station(("New York", 40.6, -73.9))

station_df["city"] = station_df.apply(check_station, axis=1)
final_stations = station_df.set_index("station").dropna()
final_stations.head()

years = [y for y in os.listdir(root) if os.path.isdir(root / y)]
cols = ["STATION", "DATE", "MAX", "WDSP", "PRCP"]

df_name = root / "weather.csv"

if os.path.exists(df_name):
    df_weather = pd.read_csv(df_name)
else:
    dfs = []
    for y in years:
        for f in os.listdir(root / y):
            station = int(f.replace(".csv", ""))
            if station in final_stations.index:
                df = pd.read_csv(root / y / f, usecols=cols, parse_dates=["DATE"])
                df["city"] = final_stations.loc[station, "city"]
                dfs.append(df)
    df_weather = pd.concat(dfs).reset_index(drop=True)
    df_weather.to_csv(df_name, index=False)

df_weather

# Yes it has all three variants -_-
df_weather = df_weather.replace(999.9, np.NaN).replace(99.99, np.NaN).replace(9999.9, np.NaN)
df_weather

df_weather[["MAX", "PRCP", "WDSP"]].hist(bins=100, log=True, layout=(1, 3), figsize=(10, 4));


df_weather["cold"] = minmax_scale(df_weather.MAX.clip(14, 59), (-1, 0))
df_weather["hot"] = minmax_scale(df_weather.MAX.clip(83, 100), (0, 1))
df_weather["rating_precip"] = minmax_scale(df_weather.PRCP.clip(0, 1.5), (0, 1))
df_weather["rating_wind"] = minmax_scale(df_weather.PRCP.clip(0, 20), (0, 1))

# Combine the weather and temp ratings
df_weather["rating_weather"] = df_weather[["rating_precip", "rating_wind"]].max(axis=1)
df_weather["rating_temp"] = df_weather.cold + df_weather.hot + 0.001

# Make some little feature to represent our total rating
df_weather["rating"] = np.sign(df_weather.rating_temp) * df_weather.rating_weather + df_weather.rating_temp
df_weather["rating"] = minmax_scale(df_weather["rating"].clip(-1, 1))

ax = df_weather["rating"].hist(bins=100, log=True, figsize=(8, 4))
ax.set_xlabel("Rating"), ax.set_ylabel("Frequency");

df_weather["day"] = df_weather.DATE.dt.dayofyear
df = df_weather.groupby(["city", "day"]).rating.mean().reset_index()
df

city_order = df.groupby("city").rating.mean().sort_values(ascending=False)
cmap = plt.get_cmap('cmr.fusion_r')

# Get a nice dark figure
bg = "#111111"
plt.style.use("dark_background")
fig, axes = plt.subplots(ncols=5, nrows=6, figsize=(10, 12))
fig.patch.set_facecolor(bg)

# Make donut plots
for (city, avg), ax in zip(city_order.iteritems(), axes.flatten()):
    df_tmp = df[df.city == city]
    xs = np.ones(df_tmp.shape[0])
    colors = [cmap(0.95 * r) for r in df_tmp.rating]
    ws, ts = ax.pie(xs, colors=colors, counterclock=False, startangle=90)
    # Set the line for each wedge to stop artifacts
    for w, c in zip(ws, colors):
        w.set_linewidth(0.5)
        w.set_edgecolor(c)

    ax.set_title(city, pad=-2)
    ax.set_aspect('equal', 'box')
    ax.add_artist(plt.Circle((0, 0), .6, color=bg))

    # Add average rating color circle
    ax.add_artist(plt.Circle((0, 0), .2, color=cmap(avg)))


# Add the custom colorbar
fig.subplots_adjust(top=0.83, bottom=0.04)
cbar_ax = fig.add_axes([0.2, 0.9, 0.6, 0.015])
cbar_ax.set_title("Yearly weather trends for major US cities", pad=25, fontsize=18)
cb = mpl.colorbar.ColorbarBase(cbar_ax, cmap=cmap, orientation='horizontal',
                               ticks=[0, 0.25, 0.5, 0.75, 1])
cb.outline.set_visible(False)
cb.ax.set_xticklabels(["Cold and/or \nBad Weather", "Chilly", "Feeling good", "Warm", "Hot and/or\nBad Weather"]);

# And add our annotations
plt.annotate('Using completely arbitrary temperature preferences',
                    (0.5,1), (0, 15), xycoords='axes fraction', color="#a19a92",
                    textcoords='offset points', size=10, va='top', ha="center")
plt.annotate('Source: NOAA (https://data.nodc.noaa.gov/cgi-bin/iso?id=gov.noaa.ncdc:C00516)',
                    (0.5,0.024), (0, 0), xycoords='figure fraction', color="#a19a92",
                    textcoords='offset points', size=10, va='bottom', ha="center")
